Description

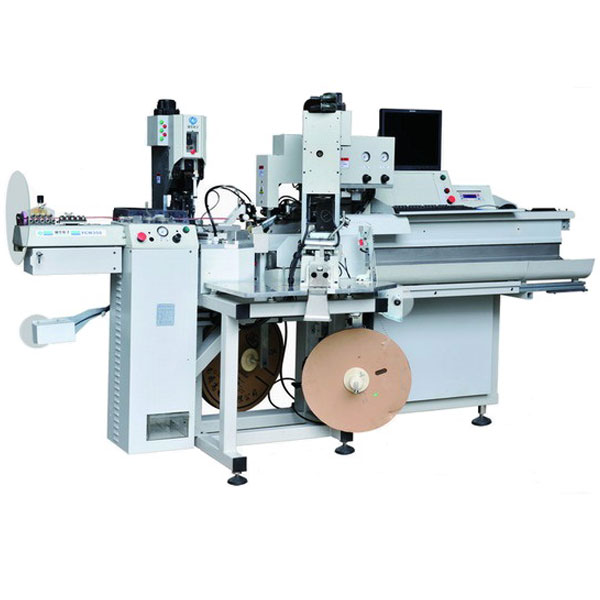

Full Automatic Terminal Crimping Machine JST350
Feature
* The first machine researched & developed independently in China. Special designed for Automobile Harness.
* Modularized design, different functions can be attached: sealing, twisting, tinning wires.
* High-tech: the outstanding mechanic, electric and pneumatic integration.
* High-precision: servo-controlled module to realize the precise locating.
* Super-high speed: double closed loop length measurement module to realize the perfect integration of precision and speed.
* Independent intellectual property rights: independent R&D of the whole-machine, machinery and electric control. Additional functions are extensible.
* Ergonomic design: industrial control PC; providing an easy-to-understand man-machine interactive interface. The employee training period is largely shortened.
Specifications
* Model: jst350
* Cutting Length: 60-10000 mm
* Stripping Length: front end:0–15 mm (up to30mm); back end:0–15 mm
* Wire Range: AWG 14 — AWG 26
* Wire Feeding Speed: MAX.6m/s
* Crimping force: 2.0 Ton
* Power: AC380 V 50/60HZ 3 PHASES
* Air Source: 0.5-0.6 Mpa
* Air Consumption: 6.5m3/h
* Dimensions: 3400 mm X 1100 mm X 1190 mm
* Weight: Approx. 940 kg
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
