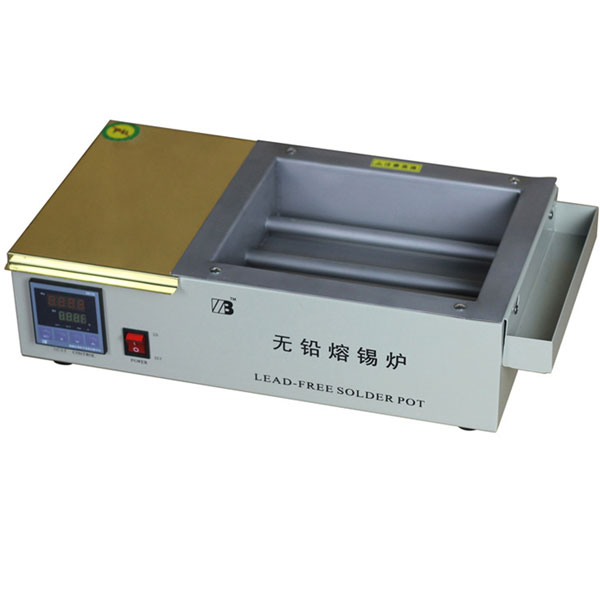

Lead-free Solder Pot XC-2520D

* temperature range: 20-500 degrees +/-1%
* internal dimension: 250* 200*70mm
* capacity: 25kg
* power rating: 1500w
* power supply: AC220V +/-10% 50Hz
* measurement: 470*260*120mm
* weight: 8.1kg

Description

[av_two_fifth first min_height=’av-equal-height-column’ vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]

[av_gallery ids=’5959′ style=’big_thumb lightbox_gallery’ preview_size=’shop_catalog’ crop_big_preview_thumbnail=’avia-gallery-big-crop-thumb’ thumb_size=’shop_catalog’ columns=’5′ imagelink=’lightbox’ lazyload=’avia_lazyload’]

[/av_two_fifth][av_three_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]

[av_textblock size=’18’ font_color=” color=”]
Lead-free Solder Pot XC-2520D
[/av_textblock]

[av_textblock size=” font_color=” color=”]
* temperature range: 20-500 degrees +/-1%
* internal dimension: 250* 200*70mm
* capacity: 25kg
* power rating: 1500w
* power supply: AC220V +/-10% 50Hz
* measurement: 470*260*120mm
* weight: 8.1kg
[/av_textblock]

[av_button label=’Contact us’ link=’page,1195′ link_target=” size=’large’ position=’left’ icon_select=’yes’ icon=’ue854′ font=’entypo-fontello’ color=’theme-color’ custom_bg=’#444444′ custom_font=’#ffffff’]

[/av_three_fifth][av_textblock size=” font_color=” color=”]

Product features

1,Built-in great power heater, with the function of melting lead-free solder and reaching the setting temperature rapidly, the electric energy efficiency can reach over 90%,prolonging the service life and saving energy.
2,High quality titanium tin pot which is high temperature resistant, anti-corrosive and long-lived.
3,Adopt computer intelligent PID control, noble-metallic sensor can do the functional operation automatic recording the temperature in the pot,
4,Built-in many layer stainless steel heating tube, heating up rapidly, steady,high-efficiency,heat transfer uniformity,preheat quickly,automatic constant temperature.

specifications

Model  XC-1510D  XC-2015D  XC-2520D  XC-3025D  XC-3530D
Temperature Range  20oC~500oC±1%  20oC~500oC±1%  20oC~500oC±1%  20oC~500oC±1%  20oC~500oC±1%
Internal Dimension  150×100×70mm  200×150×70mm  250×200×70mm  300×250×70mm  350×300×70mm
Capacity  7.5Kg  15Kg  25Kg  38Kg  53Kg
Power Rating  600W  1200W  1500W  2000W  2200W
 Power Supply  AC220V±10%50Hz  AC220V±10%50Hz  AC220V±10%50Hz  AC220V±10%50Hz  AC220V±10%50Hz
 Measurement  370×160×120mm  420×210×120mm  470×260×120mm  520×310×120mm  520×410×120mm
 Weight  4.7 KG  6.0 KG  8.1 KG  9.8 KG  12.1 KG

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
