Description
FEATURES：
1.YIMZ no leakage self-priming magnetic pump is strong self-priming industrial pump which is designed voluntarily according to international standards of ISO2858, GB5662 AND DIN24256 by us. It combines performance of magnetic pump and self-priming centrifugal pump in one. The technical index and performance has already reached domestic and international advanced level of similar products.
2.Pump body be made of metal housing with FEP, PTFE or PFA lining, the flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
3. The shaft seal is built-in type single mechanical seal; the optional grinding sealing surface: silicon carbide, cemented carbide, etc; Clients also can choose double mechanical seal or external mechanical seal as required, to make sure satisfy the demand of delivering all kinds of medium and the working life of shaft seal.
4.New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
5.The design of self-priming and gas-liquid mixture has strong function of self-priming, the height can reach 4 meters.
6.No need of independent lubrication and cooling, reducing energy consumption. Horizontal mount, small vibration, low voice, international standard design, stable operation,
Application: Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range：design pressure：1.6Mpa, flow：2-400m3/h, head：20-125m, power：1.1-110kw
Applicable temperature：-30～120℃, can be up to 350℃ if using new type material.
Optional accessories： monitoring of leakage device, monitoring of temperature device, preventive idling running.
NOTES: Please indicate during ordering if the proportion of medium is larger than 1.3mg/cm3. No idling running. No delivering medium with particles or crystalline.

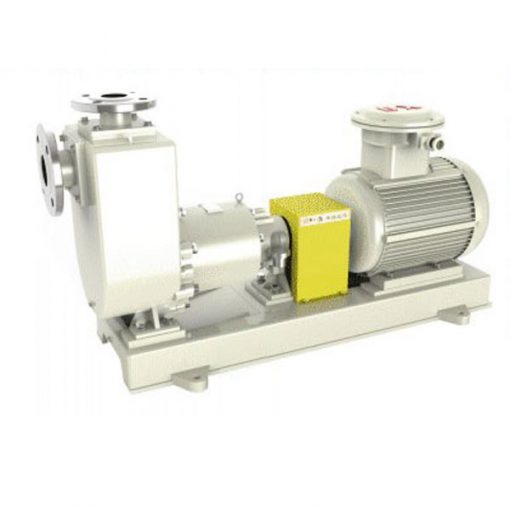

YIMZ Noleakage Self-priming Magnetic Pump
