Description
FEATURES：
1. YML non-leakage magnetic pipeline pump is a new type magnetic pipeline pump which is designed voluntarily by our company according to YM series; it combines advantages of magnetic driven pump and centrifugal pipeline pump, which is the newest non-leakage pipeline centrifugal pump.
2. The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
3. New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
4. Shaft sleeve, slide bearing are made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
5.Enclosed static seal completely solves the problem of dielectric leakage.
6.Direct coupling pull back design, no need to dismount pipe, easier maintenance.
7.No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.
Application: Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range：design pressure：1.6Mpa、flow:2-200m3/h、head：12-125m、power：1.1-55kw
Applicable temperature：-30～120℃, can be up to 350℃ if using new type material.
Optional accessories： monitoring of temperature device, monitoring of leakage device, preventive idling running device.
NOTES: Please indicate during ordering if the proportion of medium is larger than 1.3mg/cm3. No idling running. No delivering medium with particles or crystalline.

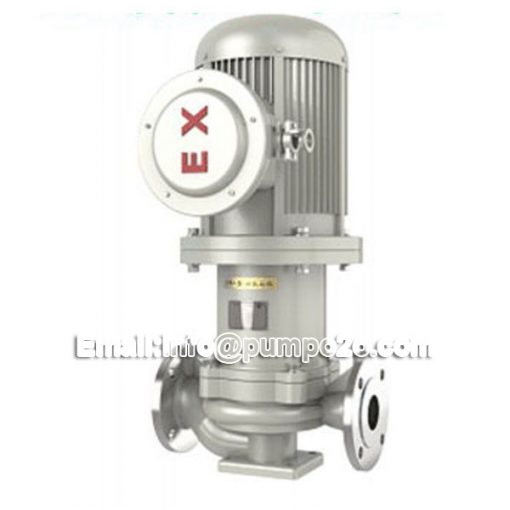

YML No Leakage Pipeline Magnetic Pump
