Description
FEATURES：
1.YZMQ no leakage magnetic self-priming pump is a new type industrial pump with characteristics of full sealing, no leakage, no pollution and energy-efficient.
2.The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
3. Ferrite magnet with good magnetism, high temperature resistant and no demagnetization is selected.
4. Shaft sleeve, slide bearings are made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
5. Enclosed static seal completely solves the problem of dielectric leakage.
6. No need of independent lubrication and cooling water, reducing energy consumption.
7. Direct coupling pull back design, No need to dismount pipe, easier maintenance.
Application:
Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range：design pressure：0.6Mpa, flow 1.2-50m3/h, head：5-50m, power：0.12-15kw
A -30～120℃, can be up 350℃ if using new type material.
The optional accessories: preventive idling running device, monitoring of leakage device, temperature testing
device.
：
pplicable temperature：
NOTES: No idling running. No delivering medium with particles or crys talline. No delivering medium that proportion is larger than 1.3mg/cm3.

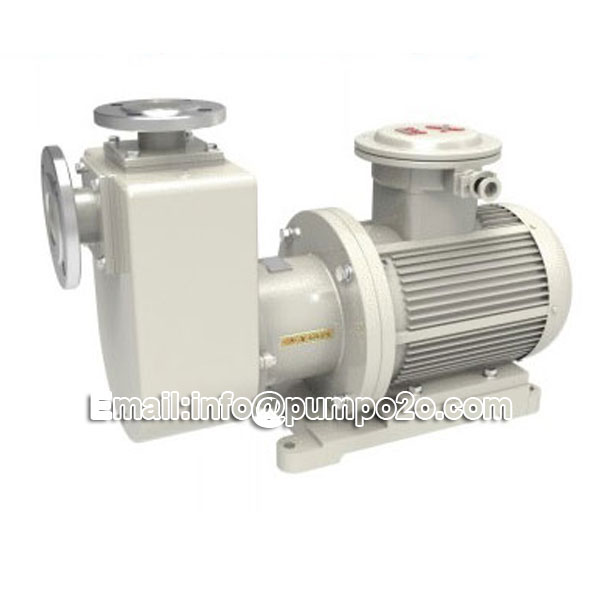

YZMQ noleakage magnetic self-priming pump
